Self supporting FTTH drop cable

1. G652D/G657A1/G657A2 optical fiber
2. GFRP/KFRP/Steel wire
3. LZSH jacket

+86-13868022777

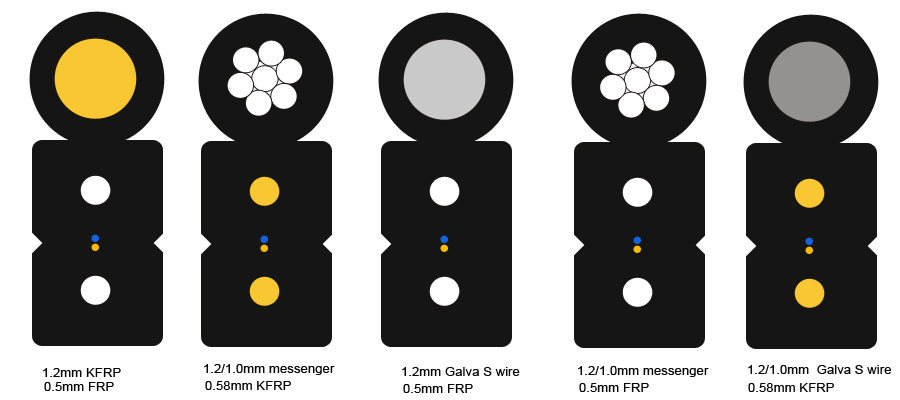

JLOFC-FIGURE8-TYPE CABLES 1,2,4, CORES,
WITH FRP MESSENGER. REINFORCED BY FRP RODS

Product code	Fiber optical figure8 type drop cables 1,2,4 cores With FRP MESSENGER, Reinforced by FRP rods
Cable type	FOC-FTTH+8FRP-LSZH+2FRP-1XG657A1-2X5 FOC-FTTH+8FRP-LSZH+2FPR-2XG657A1-2X5 FOC-FTTH+8FRP-LSZH+2FRP-4XG657A1-2X5
Cable size	5.0*2.0±0.2mm
Fiber color	Blue,Orange, Green, Brown
Fiber types	9/125(G652D G657A1 G657A2)
Sheath color	Black (white, gray color upon request)
Sheath material	LSZH
Messenger wire	FRP rod. OD=1.0mm
Strength member	Steel rod. OD=0.4mm
Cable weight, kg/km	Appprox 13.5kg
Min.bending radius,mm	10(static) 25(dynamic)
Attenuation, dB/km	≦0.4 at1310nm ≦0.3 at1550nm
Short term tensile,N	300
Crush resistance, N/100mm	1000
Operation temperature, ℃	-40-+70

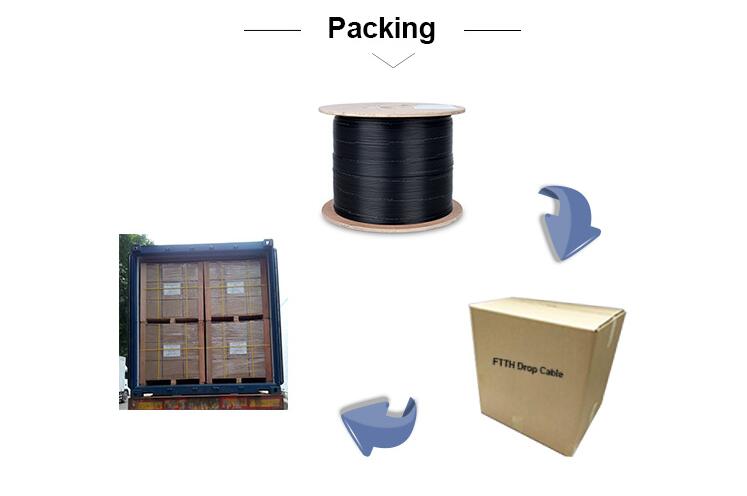

Packing	1000m or 2000m
