FTTH Drop Cable
Current page: > Products

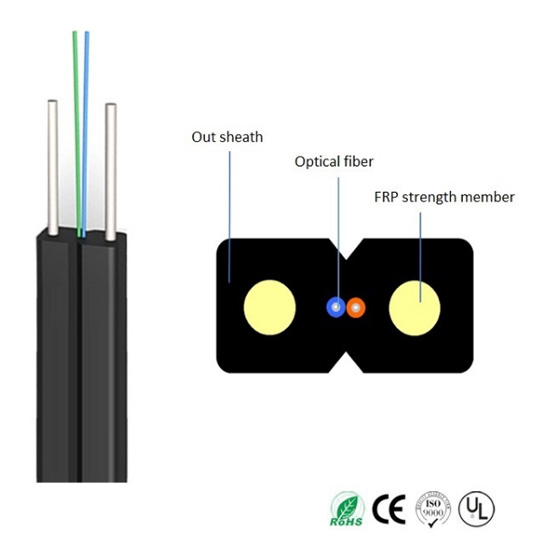

Indoor FTTH optical fibre cables

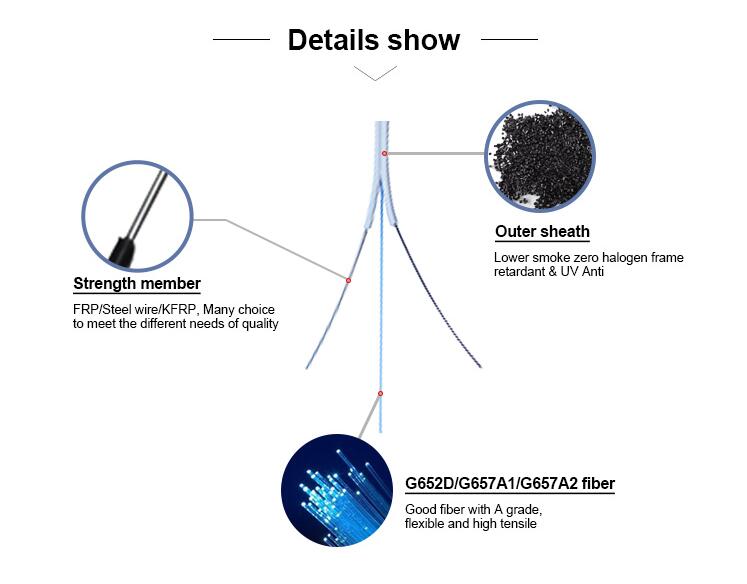

1. G652D/G657A optical fiber
2. GFRP/KFRP/Steel strand
3. LZSH jacket
Product Details
Application:
JINLONG self supporting FTTH cable designed for direct to home, office.
Typical Parameters
| Optical Fiber Type * | ITU T G657A1/G657A2/ G652D | |
| Strength member | Two Steel wire with diameter of 0.5mm | |
| Minimal pull tension strength, N | 80N / 40N (short term/long term) | |
| Minimal crush pressure, N/100mm | 1000/100mm | |
| Jacket | LSZH black color | |
| Minimal bending radius, n x Ø | 10 | |
Temperature | Installation | -15oC ~ 40oC |
| Operation/Storage | -40oC ~ 60oC | |
Cable Type | Cable Diamter(mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
Short-term | Long-term | Short-term | Long-term | Short-term | Long-term | |||
GJFH-1 | 2.0*3.0 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
GJFH-2 | 2.0*3.0 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
GJFH-4 | 2.0*3.2 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
| Immediately get factory price..... |
1. 100% competitive factory price
2. Professional：24 years focus on optical fiber cable and optical fiber
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 15,000,00 cores km steady supplied every
5. ISO9001, CE, TLC etc certificate
6. Our products used by more than 21 country customers
