FTTH Drop Cable
Current page: > Products
Indoor FTTH optical fiber cable
1. G652D/G657A optical fiber
2. GFRP/KFRP/Steel strand
3. LZSH jacket
Product Details

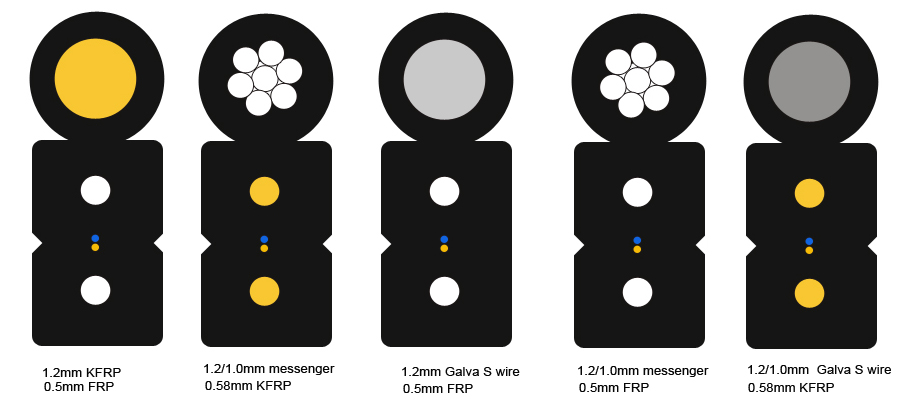

JLOFC-FIGURE8-TYPE CABLES 1,2,4, CORES,
WITH FRP MESSENGER. REINFORCED BY FRP RODS
| Product code | Fiber optical figure8 type drop cables 1,2,4 cores With FRP MESSENGER, Reinforced by FRP rods |
| Cable type | FOC-FTTH+8FRP-LSZH+2FRP-1XG657A1-2X5 FOC-FTTH+8FRP-LSZH+2FPR-2XG657A1-2X5 FOC-FTTH+8FRP-LSZH+2FRP-4XG657A1-2X5 |
| Cable size | 5.0*2.0±0.2mm |
| Fiber color | Blue,Orange, Green, Brown |
| Fiber types | 9/125(G652D G657A1 G657A2) |
| Sheath color | Black (white, gray color upon request) |
| Sheath material | LSZH |
| Messenger wire | FRP rod. OD=1.0mm |
| Strength member | Steel rod. OD=0.4mm |
| Cable weight, kg/km | Appprox 13.5kg |
| Min.bending radius,mm | 10(static) 25(dynamic) |
| Attenuation, dB/km | ≦0.4 at1310nm ≦0.3 at1550nm |
| Short term tensile,N | 300 |
| Crush resistance, N/100mm | 1000 |
| Operation temperature, ℃ | -40-+70 |
| Packing | 1000m or 2000m |
1. 100% competitive factory price
2. Professional：24 years focus on optical fiber cable and optical fiber
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 15,000,00 cores km steady supplied every
5. ISO9001, CE, TLC etc certificate
6. Our products used by more than 21 country customers
