1.Handheld,lightweight and convenience for carrying
2. up to 45dB high dynamic range
3.≤1m extra-short event dead zone
4.0.05m high distance resolution,128k sampling points
Product Details

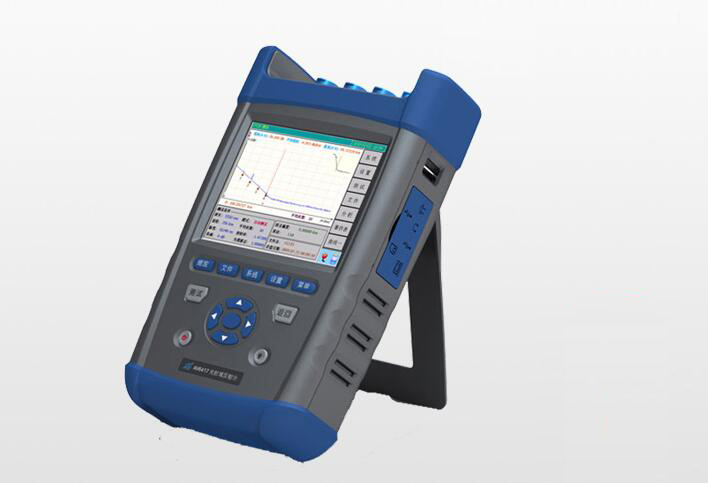

AV6418 OTDR is a high performance measuring instrument with multifunction designed for testing FTTx network. It's mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It's widely applied in the manufacture, construction and maintenance in optical fiber communication system.
Main Features:
Handheld,lightweight and convenience for carrying
45dB high dynamic range
≤1m extra-short event dead zone
0.05m high distance resolution,128k sampling points
Fast auto measurement,one-button operating
Test up to four wavelengths with a single unit
Communication light check automatically
Remote function via Ethernet
Double USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync
Supporting Bellcore GR196 file format in writing or reading
Built-in lithium battery with high capacity for over 8 hours of operating life
Visible fault locating (VFL) and optical power meter
Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning
Updating application software on-line, returning to factory is unnecessary
| Dynamic Range | Please refer to "OTDR modules specifications " |
| Distance Accuracy | ± (0.75 m + sample space + measurement distance×0.0025%)1 |
| Sampling Resolution | 0.05,0.1,0.2,0.5,1,2,4,8,16 m |
| Distance Range | 0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512 km (SMF); 0.4,0.8,1.6,3.2,6.4,16,32 (MMF of 850 nm) |
| Pulse Width | 5,10,30,80,160,320,640,1280,5120,10240,20480 ns 5,10,30,80,160,320,640,1280 (MMF of 850 nm) |
| Loss Threshold | 0.01 dB |
| Sampling Points | Up to128 k |
| Linearity | 0.05 dB/ dB |
| Loss Resolution | 0.001 dB |
| Memory Capacity | ≥800 traces(build-in), ≥65500 traces(2 GB SD storage) |
| Group Refractive Index Setting | 1.00000 to 2.00000 (0.00001 steps) |
| Distance Unit | km,m,kft,ft |
| Display | 640×480, 6.5 inch TFT-LCD (touch screen) |
| Interface | USB, Min-USB, Ethernet, earphone, SD |
| Optical Connector | FC/SC/ST ( universal connector ) |
| VFL | 650 nm ± 10 nm,2 mW(typical);CW/1 Hz |
| Optical Power Meter | Wavelength range: 1200 nm to 1650 nm Measurement range: -60 to 0 dBm Measurement uncertainty:±5% ( -10 dBm, CW) |
| Power Supply | AC adapter 100 to 240 V, 50/60 Hz, 1.5 A DC:19 V±2 V(2 A) Built-in Lithium battery: 4400 mAh, 14.8 V. Operating time ≥8 hours 2 |
| Language | User selectable : simplified Chinese, English, Russian, Korean etc.. (please contact CETC 41st for others) |
| Environment | Operating temperature : -5 to 50 ºC (charging:5 to 40 ºC) Storage temperature : -40 to 70 ºC (Battery : -20 to 6 0ºC) Relative humidity : 5% to 95%, non-condensing |
| Dimensions | 295 mm×186 mm×75 mm |
| Weight | 2.5 kg Approx. |
Note2: Low brightness, exclude measuring.
Ordering Information:
Main unit
| Ordering NO. | Description |
| AV6418-SS | AV6418 base unit with standard display brightness |
| AV6418-HS | AV6418 base unit with enhanced display brightness |
Note: the standard OTDR interface type is FC/UPC,type of FC/APC is optional.
Standard Accessories
| NO. | Name | NO. |
| 1 | Power line | 1 |
| 2 | AC/DC adapter | 2 |
| 3 | Quality certification | 3 |
| 4 | User manual | 4 |
| 5 | Trace analyzing software(CD) | 5 |
| 6 | Hard Carrying case(including gallus) | 6 |
| 7 | Special gallus of instrument | 7 |
Options
| NO. | Name | type | note |
| 1 | USB stick | Saving measuring data | |
| 2 | SD | Saving measuring data | |
| 3 | printer | Hp laser Jet P2015d or Hp laser Jet 1022 | Printing traces |
| 4 | USB cable | Communicating with PC | |
| 5 | Standby battery pack | 6417LB-1192 | Standby battery |
| 6 | FC/SC,FC/ST connectors |
Note:For the necessity of improvement, the material contained in this document is subject to change without notice.
Standard accessories
| NO. | Name | quantity |
| 1 | Power cord | 1 |
| 2 | AC/DC adapter | 1 |
| 3 | Quality certification | 1 |
| 4 | User manual | 1 |
| 5 | Trace analyzing software(CD) | 1 |
| 6 | Hard Carrying case(Including gallus) | 1 |
| 7 | Special gallus of instrument | 1 |
Note: the standard OTDR interface type is FC/UPC,type of FC/APC is optional.
OTDR Modules Specifications
| Ordering number | Operating wavelength | fiber type | Dynamic Range2 (dB) | Event Dead zone3 (m) | Attenuation dead zone (m) |
| AV6418-2101 | 1310/1550nm | SMF | 42 / 40 | 2/2 | 10/10 |
| AV6418-2103 | 1310/1550nm | SMF | 37 / 35 | 1/1 | 10/10 |
| AV6418-3103 | 1310/1550/1625nm(build-in filter) | SMF | 37/ 36 / 34 | 1/1/1 | 10/10/10 |
