Application:
JINLONG Single loose tube cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The double steel wire design for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

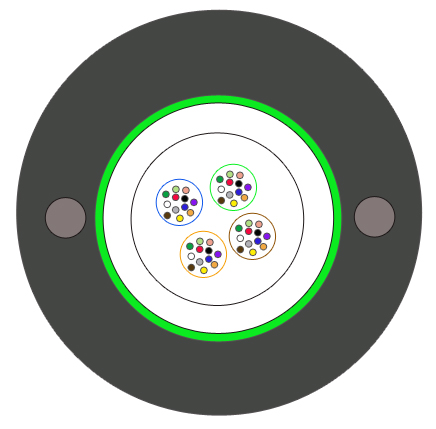

Design & Construction：
*Single tube design  (up to 48 fibers)
*G652D optical fiber
*Double steel wire strength member
*Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
*With simple structure easy to install
*PE sheath materials
*Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow


---

Typical Parameters

Fiber count	Cable OD (mm)	Cable weight(kg/km)	Min.bending radius(mm)		Permissible tensile force(N)		Permissible pressure force(N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-12	8.0	70	10D	20D	1500	600	1000	300
14-24	8.7	81	10D	20D	1500	600	1000	300
26-36	9.4	95	10D	20D	1500	600	1000	300
38-48	10	105	10D	20D	1500	600	1000	300
"D" is cable diameter.



All sizes and performance values can be specified by Customer

---
