Duct Optical fiber cable
Current page: > Products

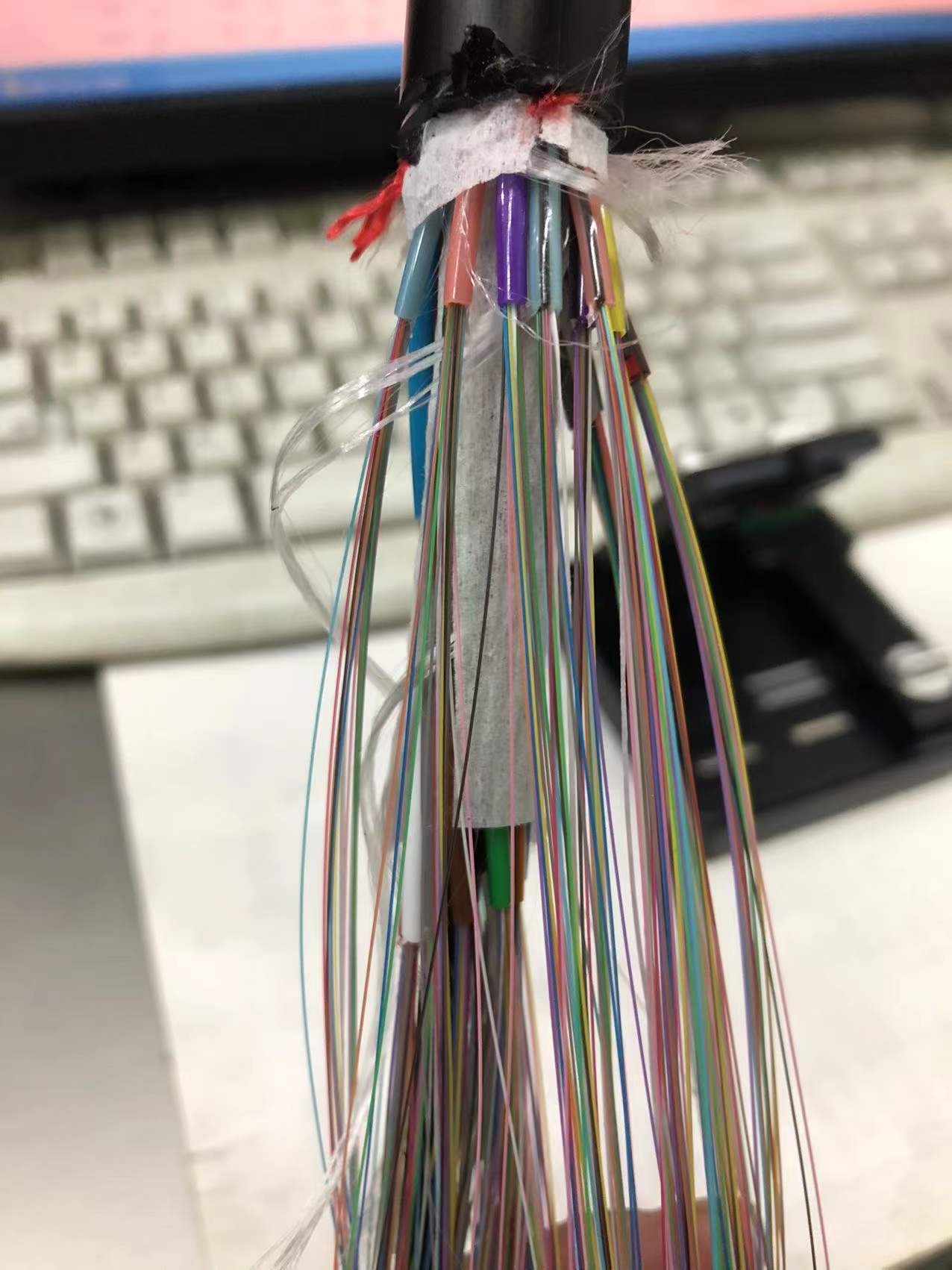

2 to 288 cores dry core Fiber Optical Cable
1. G652D,G657A1 optical fiber
2. FRP strength member
3. Dry core design
Product Details
-JLOFC dry core stranded loose tube cables are designed for outdoor use for campus, city and intercity backbones in duct installations.
Application
Aerial
pipeline
Properties : Main mechanical properties
| Max Tension(N) | Max Crush Resistance (N/100mm) | Min. Bend Radius | |||
| Long | Short | Long | Short | Installation | Static |
| 1000 | 2000 | 1000 | 2000 | 20xOD | 10XOD |
Environmental conditions
| Temperature Range, Installation | -20℃ + 70℃ |
| Temperature Range, operation | -40℃ + 70℃ |
| Temperature Range, Storage | -40℃ + 70℃ |
Design
| Cable size | |||||||
| Fiber number | 12 | 24 | 36 | 48 | 72 | 96 | 144 288 |
| Central Element | FRP | ||||||
| Fiber Coloring | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua | ||||||
| Fiber per tube | 12 | ||||||
| Loose tube color coding | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua Bule*, Orange*, Green*, Brown*,Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* | ||||||
| Number of rip cord | 2 | ||||||
| Stripe | Red | ||||||
| Outer jacket material | HDPE | ||||||
| Tape | Water-swellable | ||||||
| OD (mm) | 8.8 | 8.8 | 8.8 | 10.2 | 10.2 | 11.8 | 14.4 16.9 |
| Weight(kg/km) | 60 | 60 | 60 | 82 | 82 | 109 | 160 179 |
Standards
| Fiber Standards | TIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2 |
| Water blocking | IEC 60794-1-2 F5 |
| Fiber | Single-mode ITU G.652.D | |
| Max Attenuation | 1310nm/1383nm/1550nm | 0.36dB/km/0.36dB/km/0.22dB/km |
| Immediately get factory price..... |
1. 100% competitive factory price
2. Professional：25 years focus on optical fiber cable and optical fiber
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 7,600,000 cores km steady supplied every year
5. ISO9001, ISO14000, OHSMS18001,CE, TLC etc certificate
6. Our products used by more than 21 country customers
