Duct Optical fiber cable

Current page: > Products > outdoor Optical fiber cable > Duct Optical fiber cable
Products

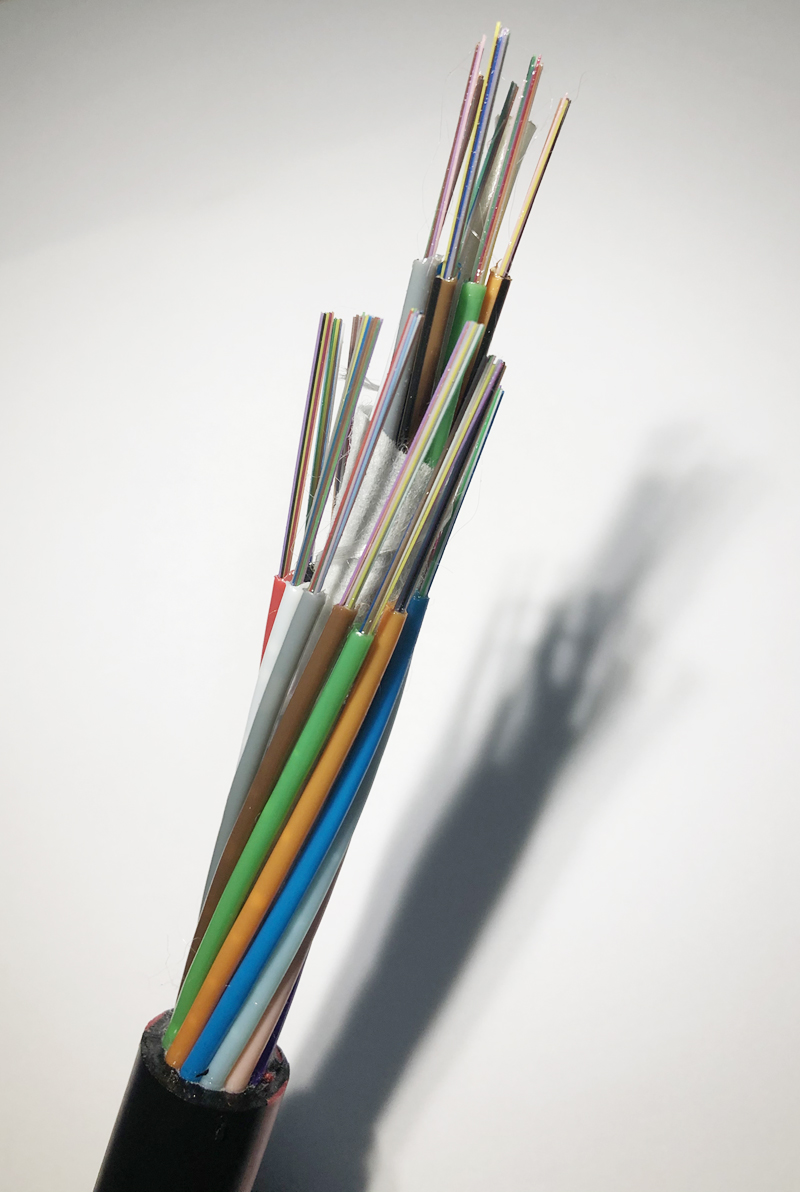

2 to 288 cores non metal fiber optical cable

1. G652D,G657A1 optical fiber
2. FRP strength member
3. Water blocking tape and yarn.

+86-13868022777

Product Details





-JLOFC stranded loose tube cables are designed for outdoor use for campus, city and intercity backbones in duct installations.
-The SZ-stranded construction further reduces installation and environmental influences on the transmission
Application
Aerial
pipeline

Properties : Main mechanical properties
Max Tension(N)Max Crush Resistance (N/100mm)Min. Bend Radius
Long Short Long Short Installation Static
100020001000200020xOD10XOD


Environmental conditions
Temperature Range, Installation -20℃ + 70℃
Temperature Range, operation-40℃ + 70℃
Temperature Range, Storage -40℃ + 70℃


Design
Cable size
Fiber number 122436487296144288
Central ElementFRP
Fiber ColoringBule, orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fiber per tube12
Loose tube color codingBule, orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Number of rip cord2
Outer jacket material HDPE
TapeWater-swellable
OD (mm)8.88.88.810.210.211.814.417.0
Weight(kg/km)6262628585115169222

Standards
Fiber StandardsTIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2
Water blockingIEC 60794-1-2 F5

Fiber Single-mode ITU G.652.D
Max Attenuation1310nm/1383nm/1550nm0.36dB/km/0.36dB/km/0.22dB/km

Immediately get factory price.....


1. 100% competitive factory price
2. Professional：25 years focus on optical fiber cable
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 7,600,000 cores km steady supplied every year
5. ISO9001, ISO14000, OHSMS18001,CE, TLC etc certificate
6. Our products used by more than 21 country customers
