Microduct fiber optic cable

Central Strength Member (CSM): glass fibers reinforced plastic material (GRP), oversheating when needed.
Micro-modules: PBT material containing 12 optical fibers and filled with a suitable water tightness compound with easy strip ability.

Product Details

JLOFC Microduct fiber optic cable details
Application:

  1. Central Strength Member (CSM): glass fibers reinforced plastic material (GRP), oversheating when needed.

  2. Micro-modules: PBT  material containing 12 optical fibers and filled with a suitable water tightness compound with easy strip ability.

  3. Stranding: flex tubes, SZ stranded around the CSM.

  4. Longitudinal Water Tightness: water swellable materials (dry core).

  5. Outer Sheath: HDPE, And ripcord beneath

Outer Sheath: HDPE, one ripcord beneath.



Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow

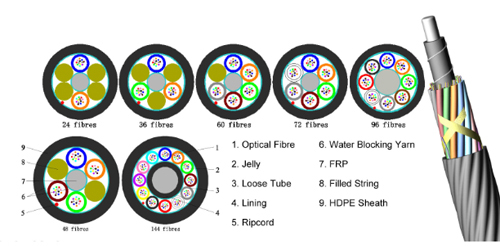

Construction and Parameter ItemsDescriptions
Optical fiber (G652D/G657A1) 12C24C36C48C72C96C144C

Micro-module		Fibers per tube12
Loose tube NO12346812
Filler number54320
CSM /EnlargementMaterialFRP

Outer sheath		MaterialHDPE
Thickness （mm）Nominal:0.5±0.1mm
Cable nominal diameter（±0.2mm）5.66.28.0
Cable approx. weight (±4kg/km)27272727274054
Tensile strength -Max(N)5001000
Max Crushing Resistance( N/100mm)800

Minimum Bending radius		Under Maximum
Tension		12.5x Cable Diameter
Without Tension:20x Cable Diameter

Temperature range		Installation-10℃～＋50℃
Storage-40℃～＋70℃
Operation-30℃～＋70℃
All sizes and proformance values can be specified by customer.
