Application:

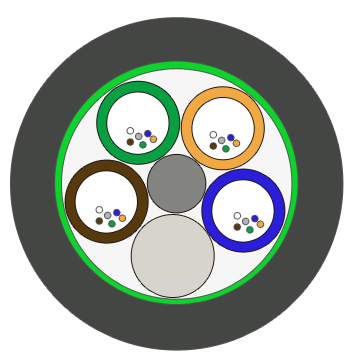

JINLONG Single Jacket steel tape Armored cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The loose tube design with a metallic strength member and steel tape for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

Design：
* Up to 288 fibers
* Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
* Can Moisture barrier with steel /polymer laminated tape.
* Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN

---

Mechanical and Environmental Test.

IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow


---

Typical Parameters


Fiber count	Cable size (mm)	Cable weight (kg/km)	Min.bending radius (mm)		Permissible tensile force (N)		Permissible pressure force (N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-36	10.5	107	10D	20D	1500	600	1000	300
38-72	11.2	125	10D	20D	1500	600	1000	300
74-84	11.9	138	10D	20D	1500	600	1000	300
86-96	12.5	155	10D	20D	1500	600	1000	300
98-108	13.2	721	10D	20D	1500	600	1000	300
132-144	15.3	220	10D	20D	1500	600	1000	300
288	18.3	335	10D	20D	1500	600	1000	300
"D" is cable diameter.


All sizes and proformance values can be specified by customer.

---
